ES990655 / Caliper Mechanism Kit
EF No
:
ES990655
Application
:
Modul T

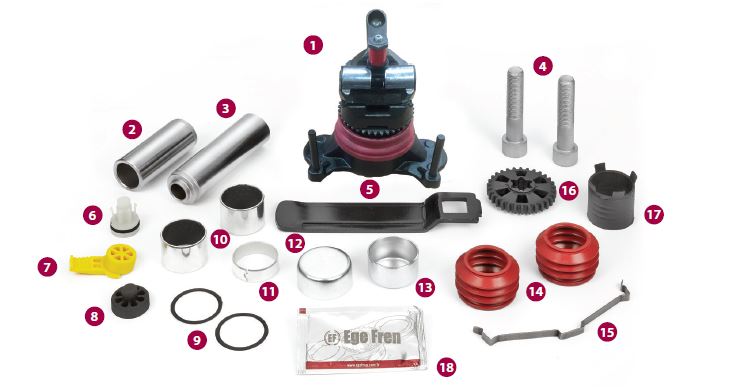

| Part Name | Dimension | Pcs. | |
|---|---|---|---|
| 1 | Mech. Set | - | 1 |
| 2 | Pin | Ø 35,5 / 87 | 1 |
| 3 | Pin | Ø 35 / 120 | 1 |
| 4 | Bolt | M16x1,5x80 | 2 |
| 5 | Pad Retrainer | - | 1 |
| 6 | Reset Shaft | - | 1 |
| 7 | Reset Shaft Plug | - | 1 |
| 8 | Cap | - | 1 |
| 9 | Pin Ring | - | 2 |
| 10 | Pin Bush | Ø 35 x 39 / 30 | 2 |
| 11 | Pin Bush | Ø39.5 x 36 / 14.5 | 1 |
| 12 | Pin Cap | Ø 45 / 22 | 1 |
| 13 | Pin Cap | Ø 42 / 26 | 1 |
| 14 | Boots | - | 2 |
| 15 | Pad Retainer Spring | - | 1 |
| 16 | Reset Shaft Gear | - | 1 |
| 17 | Pin Bush | 35.7 x 35.4 x 87 | 1 |
| 18 | Grease | - | 1 |
